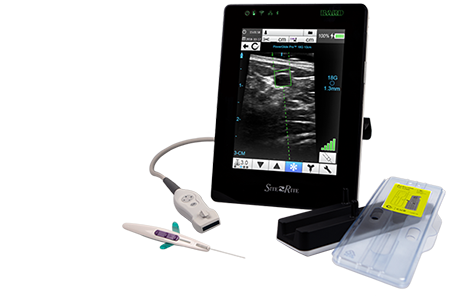

Cue™ Needle Tracking System
Add clarity to the most important moments in your day.
Features
The clarity you need to succeed.
Designed with you and your patients in mind.
Accessing a vein can be a stressful experience for nurses and patients alike.
The Cue™ needle tracking system is designed to help you confidently guide the needle* to the vein by providing real-time tracking throughout the insertion process.
How Cue™ needle tracking works:
- Activate compatible needle, which magnetizes the needle, making it visible to the probe’s sensors.
- Plan the pathway using real-time needle-tracking technology on the ultrasound image.
- Track the needle down into your target, and then you can continue with the rest of your procedure.
Product Features:
Compatible with products you already know

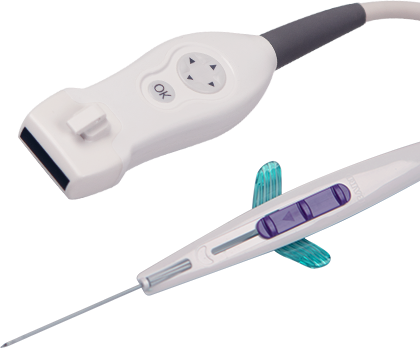

The Cue™ needle tracking system, available on the Site~Rite® 8 ultrasound system, is compatible with the PowerGlide Pro™ midline catheter.
Intersection window and depth markers allow continuous targeting during placement
A window allows proper line-up and guidance to a vein, while markers show the real-time depth of the needle tip.
Interactive training process
Our training material includes an interactive tutorial that is self-paced for each individual need. Even for those unfamiliar with ultrasound, the clear direction is designed to be easy to follow.
The Cue™ needle tracking system is a great tool to assist nurses with ultrasound-guided vascular access and a skill that will follow them throughout their career.
* Cue™ needle tracking operates with compatible needles only
Specifications
The Cue™ needle tracking system is compatible with the PowerGlide Pro™ midline catheter, available in:
- 18-, 20- and 22-gauge sizes
- 8 cm (3.1-inch) or 10 cm (3.9-inch) lengths (Note: 22-gauge only available in 8 cm length.)
- Basic kit, Basic with BioPatch® protective disk with CHG, Basic with GuardIVa™ antimicrobial hemostatic IV dressing, Full with BioPatch® disk and Probe Cover, and Full with GuardIVa™ dressing and Probe Cover packaging
The Cue™ needle tracking system is available with the Site~Rite® 8 ultrasound system. You can upgrade a system you already have or include needed accessories with new purchases.
18 Gauge
| Power-Injection Flow Rate | Length | Packaging | Quantity | Code |
|---|---|---|---|---|
| 7 mL/sec | 8 | Basic | 20/case | F118080TX |
| Basic with GuardIVa™ dressing | 20/case | F118087TX | ||
| Basic with BioPatch™ disk | 20/case | F318087TX | ||
| Full | 10/case | F218081TX | ||
| Full with GuardIVa dressing and probe cover | 10/case | F118088PTX | ||
| 10 | Basic | 20/case | F118100TX | |
| Basic with GuardIVa dressing | 20/case | F118107TX | ||
| Basic with BioPatch disk | 20/case | F318107TX | ||
| Full | 10/case | F218101TX | ||
| Full with GuardIVa dressing and probe cover | 10/case | F118108PTX |
20 Gauge
| Power-Injection Flow Rate | Length | Packaging | Quantity | Code |
|---|---|---|---|---|
| 5 mL/sec | 8 | Basic | 20/case | F120080TX |
| Basic with GuardIVa dressing | 20/case | F120087TX | ||
| Basic with BioPatch disk | 20/case | F320087TX | ||
| Full | 10/case | F220081TX | ||
| Full with GuardIVa dressing and probe cover | 10/case | F120088PTX | ||
| Full with BioPatch disk and probe cover | 10/case | F320088PTX | ||
| 10 | Basic | 20/case | F120100TX | |
| Basic with GuardIVa dressing | 20/case | F120107TX | ||
| Basic with BioPatch disk | 20/case | F320107TX | ||
| Full | 10/case | F220101TX | ||
| Full with GuardIVa dressing and probe cover | 10/case | F120108PTX | ||
| Full with BioPatch disk and probe cover | 10/case | F320108PTX |
22 Gauge
| Power-Injection Flow Rate | Length | Packaging | Quantity | Code |
|---|---|---|---|---|
| 2 mL/sec | 8 | Basic | 20/case | F122080TX |
| Basic with GuardIVa dressing | 20/case | F122087TX | ||
| Basic with BioPatch disk | 20/case | F322087TX | ||
| Full | 10/case | F222081TX | ||
| Full with GuardIVa dressing and probe cover | 10/case | F122088PTX | ||
| Full with BioPatch disk and probe cover | 10/case | F322088PTX |
Site-Rite® 8 Ultrasound Systems with Cue™ Needle Tracking System
| Description | Code |
|---|---|
Cue™ Starter Kit (New Customer)
| 9770606 |
Cue™ Upgrade Kit* (Everything you need to upgrade your Site~Rite® 8 Ultrasound System)
| 9770607 |
*Customers with Site~Rite 8 ultrasound systems with hardwired probes need a connector upgrade. Work with your imaging support rep to identify the correct upgrade code.
Replacement Codes for Cue™ Needle Tracking System
| Description | Code |
|---|---|
| Cue™ 20mm Linear Probe | 9770603 |
| Cue™ Activator | 9770604 |
| Cue™ Activator Mounting Arm | 9770605 |
| Upgrade a 9770500 Site-Rite® 8 Ultrasound System | 9770500up |
| Upgrade a 9770501 Site-Rite® 8 Ultrasound System | 9770501up |
Literature
Please refer below to the Instructions for Use (IFUs) for any indications, contraindications, hazards, warnings, and cautions.
